EASY, TOUGH, PROTECTION.
CPS DURO BOARD
WATER
RESISTANT
RESISTANT
SLIP
RESISTANT
RESISTANT
IMPACT
RESISTANT
RESISTANT
PROTECTS
SURFACES
SURFACES
REUSABLE
FABRIC
BACK
BACK
FIRE
RETARDANT
RETARDANT
LIGHT
WEIGHT
WEIGHT
HEAVY DUTY RIGID SURFACE PROTECTION

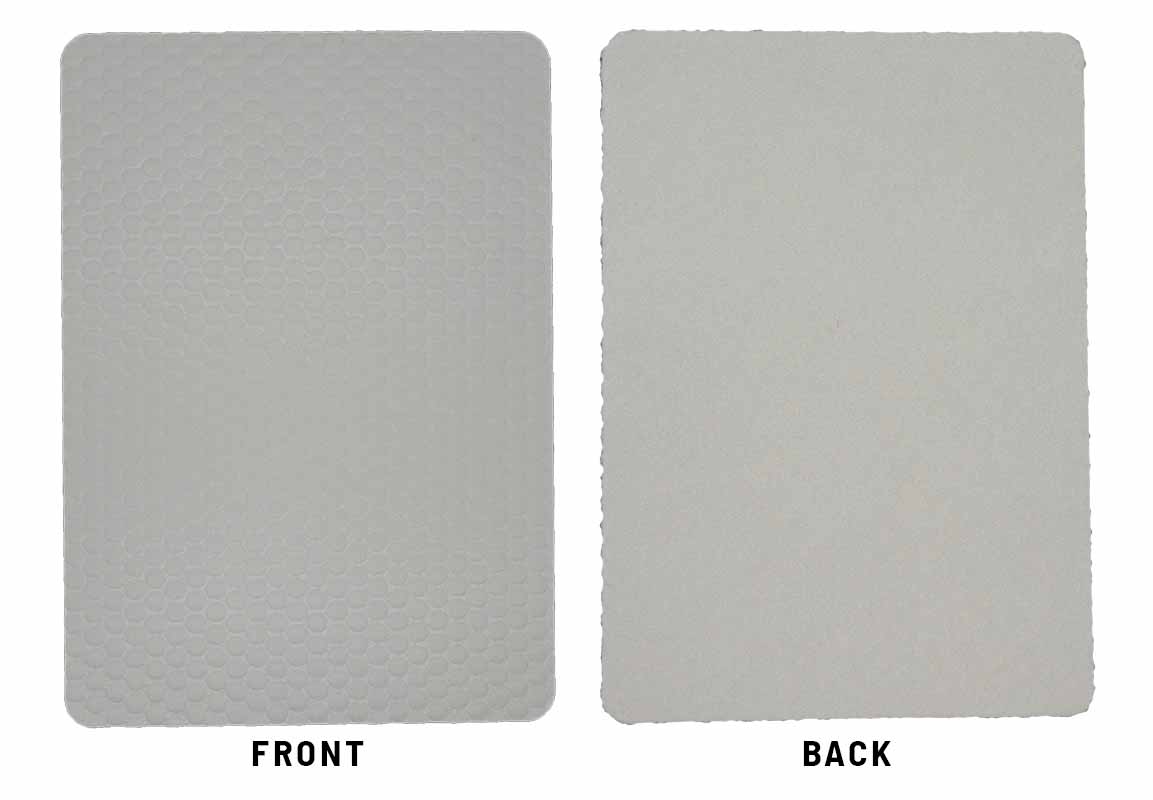

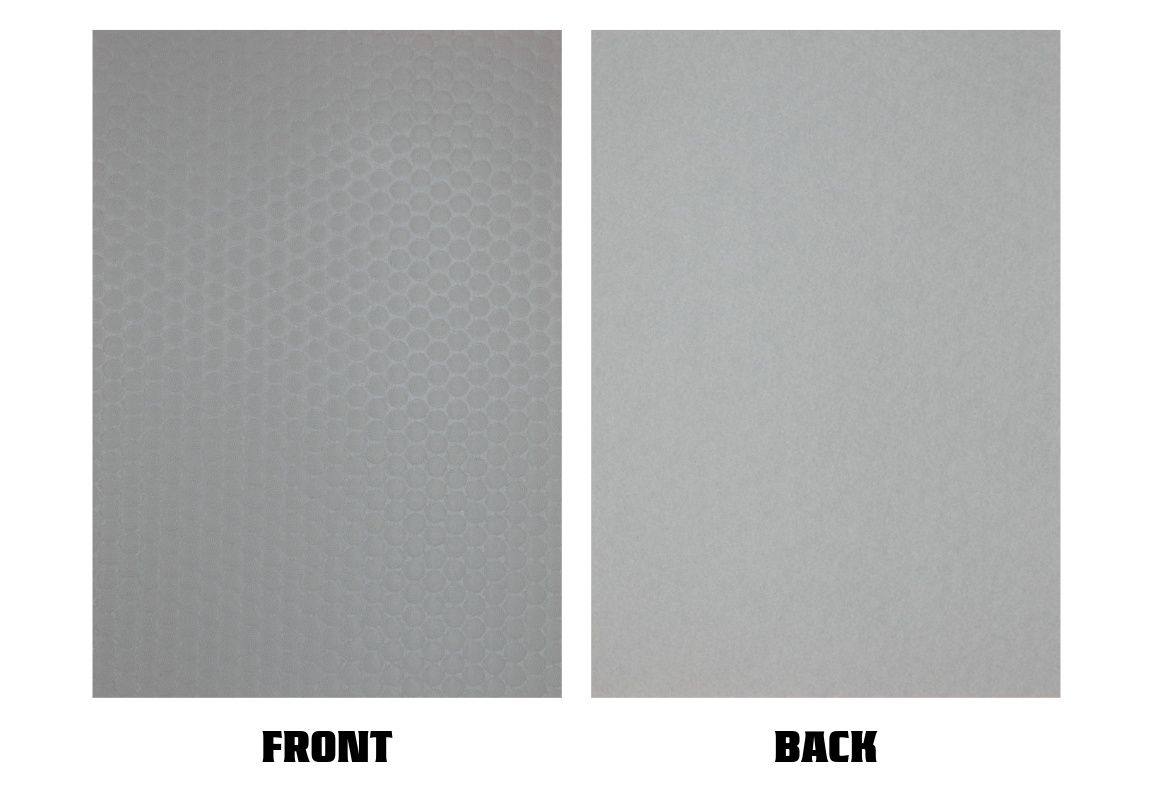

CPS Duro Board is a synthetic, rigid floor protection board that is a lightweight, high-performance solution designed to safeguard hard surfaces during construction, renovation, or heavy equipment use.
Measuring 8’ x 4’ with a 5mm thickness, each board offers full coverage and durability while remaining easy to handle and install.
Built for tough job site conditions, this protective board shields valuable floor finishes—such as polished concrete, raw concrete, marble, terrazzo, and natural stone—from damage caused by forklifts, pallet jacks, carts, and foot traffic. Its rigid structure features high compression strength, effectively dispersing weight and absorbing impact from dropped tools or equipment.
Measuring 8’ x 4’ with a 5mm thickness, each board offers full coverage and durability while remaining easy to handle and install.
Built for tough job site conditions, this protective board shields valuable floor finishes—such as polished concrete, raw concrete, marble, terrazzo, and natural stone—from damage caused by forklifts, pallet jacks, carts, and foot traffic. Its rigid structure features high compression strength, effectively dispersing weight and absorbing impact from dropped tools or equipment.
DOWNLOAD DURO BOARD PACKET
EASY, TOUGH, PROTECTION.
BENEFITS
• Water resistant and usable on exterior surfaces
• Superior high impact resistance—spreads the load of impact
• Fire retardant (ASTM E 648 Class 1, 16 CFR 630)
• Test-proven slip resistance in wet conditions (ANSI/NFSI B101.3-2012)
• Suitable for tough work environments such as work stations
• Lightweight, easy to handle and install
• Replaces the need for curling Masonite and plywood
• Far superior to cardboard protection or thin mil products
• Fabric back for additional protection from surface damage
• Boards can be cleaned and reused
• Superior high impact resistance—spreads the load of impact
• Fire retardant (ASTM E 648 Class 1, 16 CFR 630)
• Test-proven slip resistance in wet conditions (ANSI/NFSI B101.3-2012)
• Suitable for tough work environments such as work stations
• Lightweight, easy to handle and install
• Replaces the need for curling Masonite and plywood
• Far superior to cardboard protection or thin mil products
• Fabric back for additional protection from surface damage
• Boards can be cleaned and reused
TECHNICAL DATA
Property
Test Standard
Units
Result (AVG Value)
Standard Deviation
- Board Thickness
mm
5.50
0.30
- Unit Weight
g/m2
1550
50
- Flexural Strength, MD
ASTM D790 (Modified)
psi
1520
85
- Flexural Strength, TD
ASTM D790 (Modified)
psi
1388
75
- Flexural Strength, MD
ASTM D790 (Modified)
Kpsi
125
10
- Flexural Strength, TD
ASTM D790 (Modified)
Kpsi
115
5
- Flexural Strength, TD
ASTM D5420
in
4.5
1.0
- Flexural Strength, TD
ISO 3035 TAPPI-825
psi
>1000
- Flexural Strength, TD
ISO 3035 TAPPI-811
lb./in
90
23
SLIDE FOR MORE INFO >
ADDITIONAL KEY BENEFITS
• Felt backing to prevent scratches on sensitive surfaces
• Water- and chemical-resistant to protect against spills of paint, oils, acetone, and more
• Fire-retardant for added safety in active construction zones
• Resists curling and warping to stay flat and trip-free over time
Whether protecting newly finished floors or high-value surfaces during construction, this board delivers professional-grade defense, combining strength, safety, and surface sensitivity in one easy-to-use product.
• Water- and chemical-resistant to protect against spills of paint, oils, acetone, and more
• Fire-retardant for added safety in active construction zones
• Resists curling and warping to stay flat and trip-free over time
Whether protecting newly finished floors or high-value surfaces during construction, this board delivers professional-grade defense, combining strength, safety, and surface sensitivity in one easy-to-use product.
ADDITIONAL TECHNICAL DATA:
Item #: SPFPSBFB-0804
Dimensions: 4’ W x 8’ L x 1/4” (5mm) D
Coverage: 32 sqft per board
Weight: 10 lbs per board
Color: Grey
Dimensions: 4’ W x 8’ L x 1/4” (5mm) D
Coverage: 32 sqft per board
Weight: 10 lbs per board
Color: Grey
NOTE:
Flexural Test: 12 x 12” sample with 10” span, 3-point bending
Gardner Impact Test: 8 lbs steel-rod impact mass
MD: Machine Direction
TD: Transverse Direction
Kpsi: 103 psi
Gardner Impact Test: 8 lbs steel-rod impact mass
MD: Machine Direction
TD: Transverse Direction
Kpsi: 103 psi
